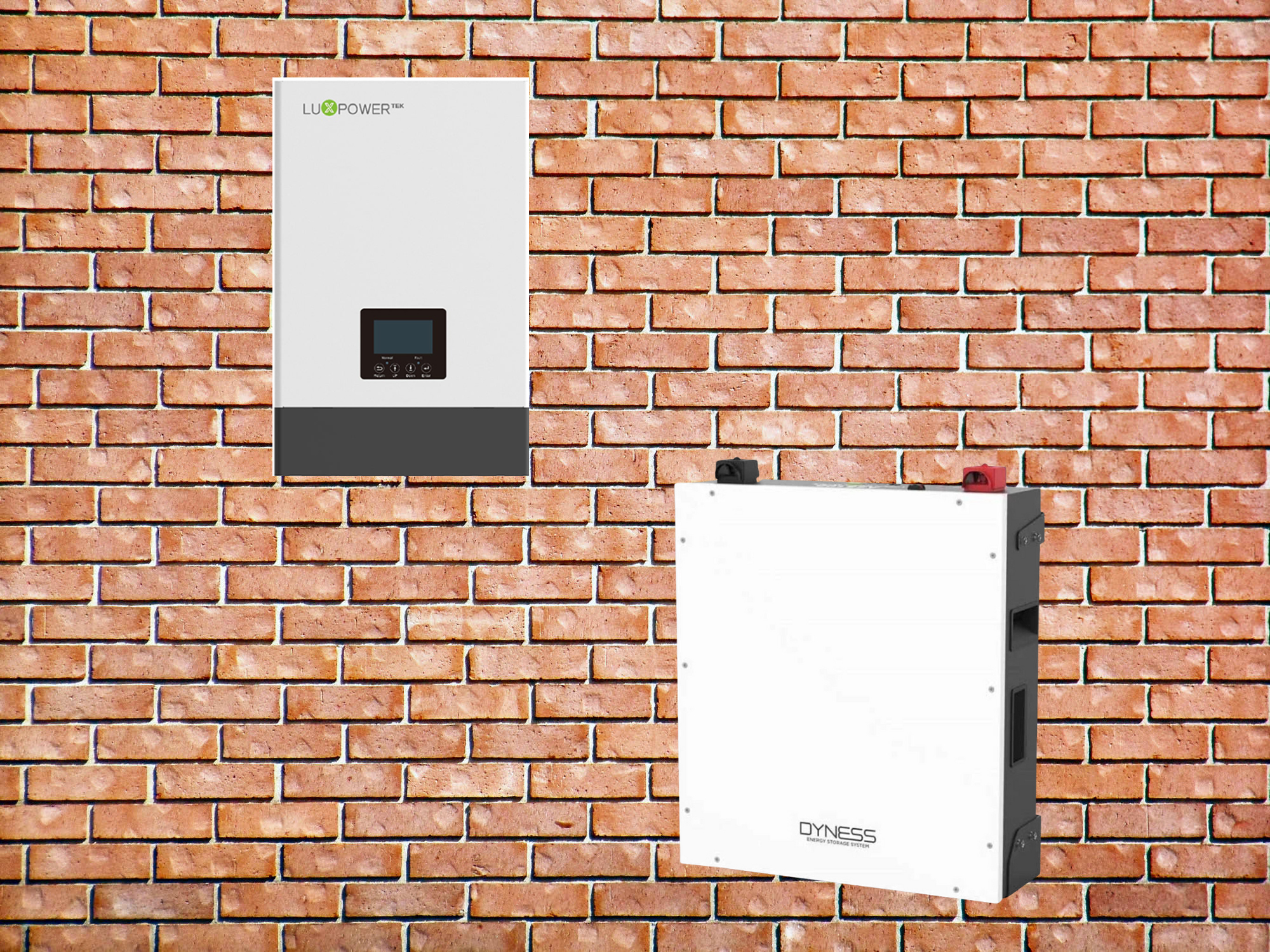

Luxpower & Dyness Loadsheding Kit

Luxpower SNA5000

The Solar Select LuxPower SNA 5000 is one of the best off-grid inverters on the market. This inverter meets all the requirements we feel is important in an inverter of this type. With two high voltage MPPT’s and a max PV input of 6000 Watts, compatibility to communicate with a wide range of lithium batteries and full off-site monitoring via an App it is hard to beat this unit at this price point.

• Intelligent offgrid & hybrid modes
• Single phase or unbalanced three phase
• Free monitoring & remote upgrade
• Wide PV input voltage range
• PV & AC power loads simultaneously
• Easy to use with battery
• Advanced Parallel, up to 50kW
• Separate generator interface available
• Host inverter automatically generated to
  manage entire system

Output
• Rated Power: 5000W
• Parallel Supported: Yes
• Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
• Normal Output Frequency: 50Hz / 60Hz
• Surge Power: 10000VA
• Switch Time: 10ms
• Wave Form: Pure Sine Wave

Battery
• Battery Type Supported: Lithium / Lead-Acid
• Normal Voltage: 51.2VDC / 48VDC
• Maximum Charging Voltage: 59VDC

Solar
• Maximum PV Power: 3200W / 3200W
• Number of MPP Trackers: 2
• Maximum PV Open Circuit Voltage: 480VDC
• MPPT Voltage Range: 100VDC – 385VDC
• Maximum Solar Charge Current: 100A
• Maximum Solar Input Current: 13A / 13A

Grid
• Normal Voltage: 230VAC
• AC Voltage Range: 110VAC-280VAC
• Maximum Charge Current: 60A
• Frequency Range: 50Hz / 60Hz (Auto Sensing)

Environment Limit
• Ingress Protection: IP20
• Relative Humidity: 5% to 95% (Non Condensing)
• Operating Temperature Range: 0°C to +50°C
• Storage Temperature: -15°C to +60°C
• Communication: CAN / RS485/ WIFI / GPRS

Dyness DL5.0C

Battery Type LiFePO4 Nominal Battery Energy 5.12kWh Nominal Capacity 100Ah Nominal Voltage 51.2V Operating Voltage 44.8-57.6V Recommended C Rate 0.5C Recommended Charge/Discharge Current 50A Max. Power Charge Current 75A Max. Power Discharge Current 100A Peak Power Charge/Discharge Current 110A(15s) Depth of Discharge 90% Net Weight 54kg Dimension[W*D*H] 558*545*150mm Charging Temp. Range 0-55°C Discharging Temp, Range -20-55°C

Communication CAN/RS485/RS232

Protection Level IP20 Expansion Up to 50 units in parallel Pros Can be used in both off-grid and hybrid setups, compact design Certification & Safety Standard UN38.3/CE-EMC/IEC62619/CEI-021 Compatible Inverters SMA/Victron/Ingeteam/Delios/Goodwe/Solis /Deye/SAJ/Voltronic/Sungrow etc.

Battery parameter settings on the inverter

• Max Charging(Bulk) Voltage: 56.5V
• Absorption Voltage: 56V
• Float Voltage: 55.5V
• Shut Down(cut off) Voltage: 48~50V
• Shut Down(cut off) SOC: 10%
• Restart Voltage: 52V
• Recommended Charge Current : 50A*BATTERY Qty
• Recommended Discharge Current : 50A*BATTERY Qty
