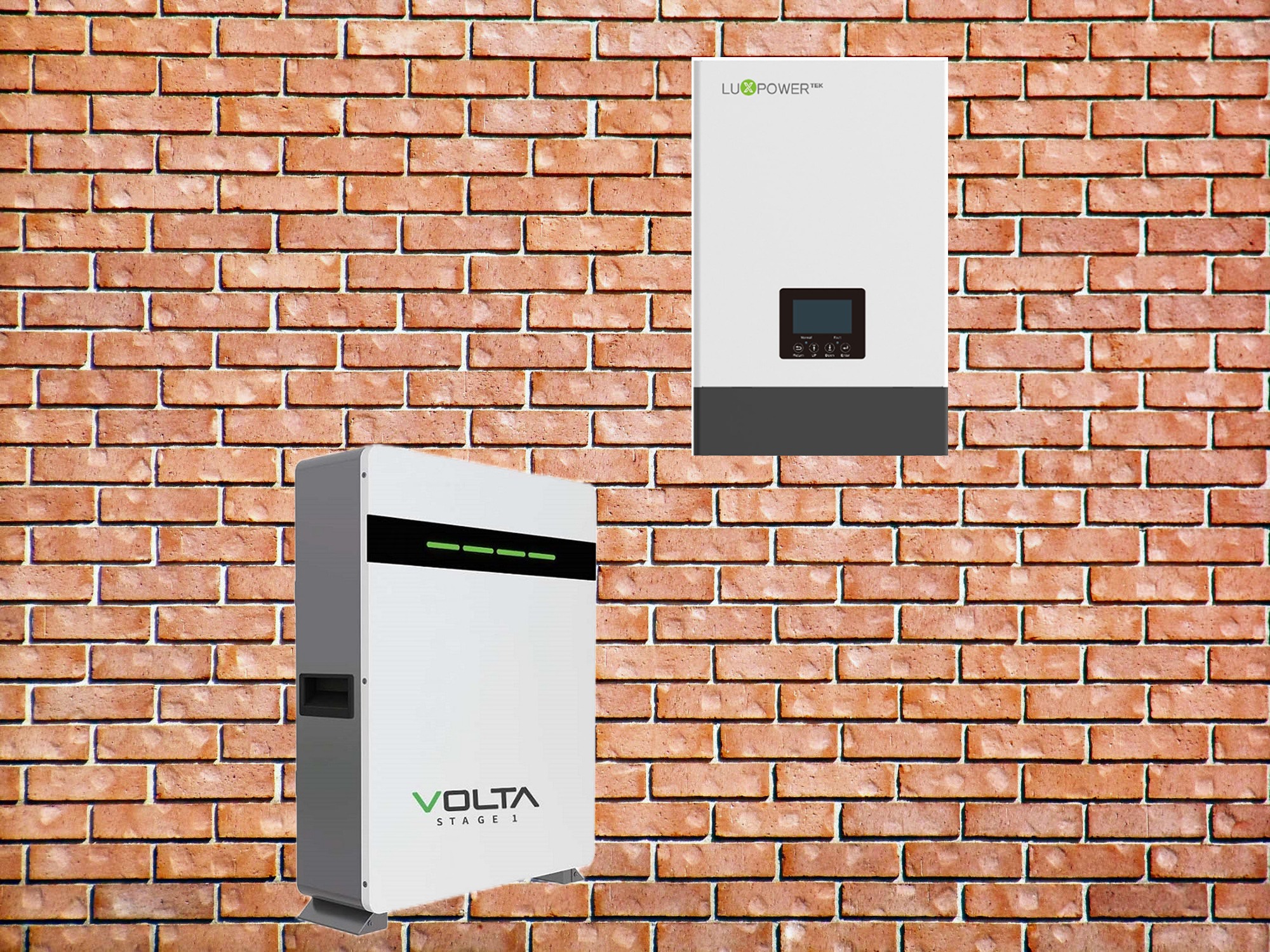

Luxpower & Volta Loadsheding Kit

Luxpower SNA5000

The Solar Select LuxPower SNA 5000 is one of the best off-grid inverters on the market. This inverter meets all the requirements we feel is important in an inverter of this type. With two high voltage MPPT’s and a max PV input of 6000 Watts, compatibility to communicate with a wide range of lithium batteries and full off-site monitoring via an App it is hard to beat this unit at this price point.

• Intelligent offgrid & hybrid modes
• Single phase or unbalanced three phase
• Free monitoring & remote upgrade
• Wide PV input voltage range
• PV & AC power loads simultaneously
• Easy to use with battery
• Advanced Parallel, up to 50kW
• Separate generator interface available
• Host inverter automatically generated to
  manage entire system

Output
• Rated Power: 5000W
• Parallel Supported: Yes
• Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
• Normal Output Frequency: 50Hz / 60Hz
• Surge Power: 10000VA
• Switch Time: 10ms
• Wave Form: Pure Sine Wave

Battery
• Battery Type Supported: Lithium / Lead-Acid
• Normal Voltage: 51.2VDC / 48VDC
• Maximum Charging Voltage: 59VDC

Solar
• Maximum PV Power: 3200W / 3200W
• Number of MPP Trackers: 2
• Maximum PV Open Circuit Voltage: 480VDC
• MPPT Voltage Range: 100VDC – 385VDC
• Maximum Solar Charge Current: 100A
• Maximum Solar Input Current: 13A / 13A

Grid
• Normal Voltage: 230VAC
• AC Voltage Range: 110VAC-280VAC
• Maximum Charge Current: 60A
• Frequency Range: 50Hz / 60Hz (Auto Sensing)

Environment Limit
• Ingress Protection: IP20
• Relative Humidity: 5% to 95% (Non Condensing)
• Operating Temperature Range: 0°C to +50°C
• Storage Temperature: -15°C to +60°C
• Communication: CAN / RS485/ WIFI / GPRS

Volta Stage 1 5.1 kWh

The Volta 5kW Lithium Battery is dependable and make for a cost-effective power source. The Volta 5.12kW lithium battery uses lithium as its cathode material since it has a high capacity for storing energy and can be recharged numerous times without losing its capacity to hold charge over time.

VOLTA 5kW lithium battery 51.2V are great for off-grid energy solutions and can be wall mounted or stand on the floor.

Features:

• Battery Type: Lithium-Ion
• Product Model: VOLTA STAGE 1
• Nominal Energy: 5.12KWH
• Nominal Voltage: 51.2VDC
• Nominal Capacity: 100AH
• Cell Type: LFP
• 1C/1C Continual Charge & Discharge
• Standard Charge Voltage: 56VDC
• Maximum Discharge Current: 100A
• Discharge Cut-Off Voltage: 44.8VDC
• Maximum Parallel Units: 8
• Design Life: 6000 Cycles @ 80% DOD @ 25°C
• Installation Type: Wall Mount & Floor Stand
• Great battery system for Luxpower or Deye Inverter setups

Environment Limit:

• Ingress Protection: IP20
• Charge Temperature Range: 0°C to +65°C
• Discharge Temperature Range: -20°C to +65°C
• Communication: RS485, RS232, CAN
• Safety Rating: MSDS / UN38.3
