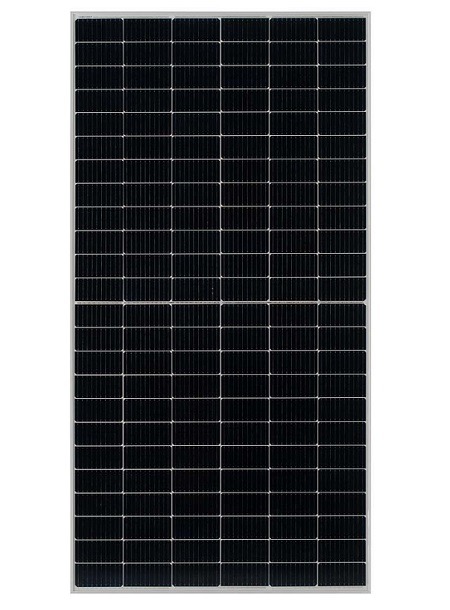

The Jinko 555W Tiger Pro Mono Facial solar panel is a 555W monocrystalline module with 144 cells from Jinko Solar, one of the world’s leading manufacturers of the photovoltaic industry. Jinko solar panels come with a massive 15-year product warranty and a 25-year linear power warranty.
Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.
Reduced Hot Spot Loss
Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.
PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
| Cell | P type Mono-crystalline |
| No. of cells | 144 (6X24) |
| Rated Maximum Power(Pmax) | 555W |
| Maximum Efficiency | 21.48% |
| Junction Box | IP68 Rated |
| Maximum System Voltage | 1000V/1500V DC |
| Operating Temperature | -40℃～+85℃ |
| Connectors | TUV 1×4.0mm2 (+): 400mm , (-): 200 mm or Customized Length |
