Deye: 20Kw Three Phase Hybrid Inverter

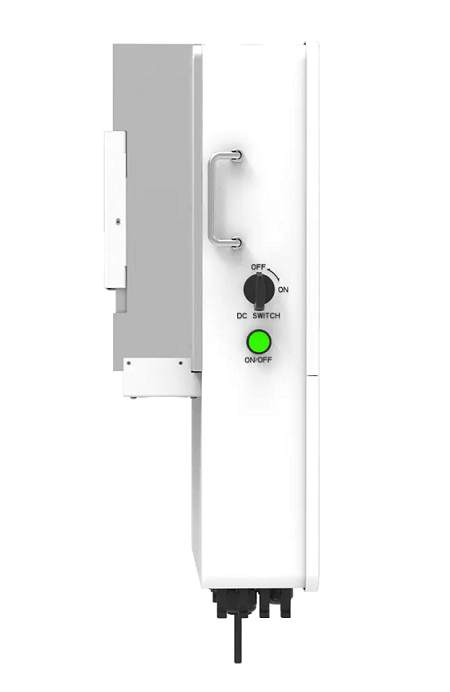

Deye 20Kw Hybrid Three Phase Inverter (20K-SG01HP3-EU)
Introducing the state-of-the-art Deye 20Kw Hybrid Three Phase Inverter (20K-SG01HP3-EU-AM2) – an exceptional addition to our range. This brand new three-phase hybrid inverter features a high voltage battery for ultimate safety and reliability. With its compact design and impressive power density, this series boasts a 1.3 DC/AC ratio, effectively optimizing device investment. Additionally, it supports three-phase unbalanced output, expanding its application capabilities. Equipped with multiple communication ports, including CAN, RS485, and RS232, along with parallel support, this inverter embodies intelligence and flexibility.

Key Features:
– Instant Remote Shutdown
– Advanced Smart Monitoring
– 100% for each phase
– Max. output up to 50%
– DC couple and AC couple
– Up to 10 Units Parallel
– Robust Charging/Discharging
– High Voltage Battery
– Charging/Discharging Schedules
– Diesel Generator Support

Battery Input Data:
– Battery: Li-Ion
– Battery Range: 160VDC to 700VDC
– Maxi Charging: 50A + 50A
– Max Discharging: 50A + 50A
– Number Of Input: 1
– Self adaption to BMS

PV String Input Data:
– Max DC Input: 26000W
– Max DC Input: 1000VDC
– Startup: 180VDC
– MPPT: 150VDC to 850VDC
– Full Load DC: 500VDC to 850VDC
– Rated DC: 600VDC
– PV: 26A + 26A
– Max PV (Isc): 39A + 39A
– MPP Trackers: 2
– Strings per MPP Tracker: 2

AC Output Data:
– AC Output and UPS: 20000W
– Max AC Output: 22000W
– AC Output: 30.4A / 29A
– Max AC: 33.4A
– Max AC Passthrough: 80A
– Peak (Off Grid): 1.5 times of Power
– Generator Input: 75.8A
– AC Current: 75.8A
– Power Factor: 0.8 Lead to 0.8 Lag
– 50/60Hz
– 3L/N/PE 220/380VAC
– 230/400VAC
– Grid Type: Three Phase

Environment Limit:
– Operating Temp: -40°C to 60°C
– Smart Cooling (<45 dB)
– BMS: RS485 / CAN
– Ingress Protection: IP65

Elevate your energy system with the advanced Deye 20Kw Hybrid Three Phase Inverter, built to empower your sustainable energy journey.
